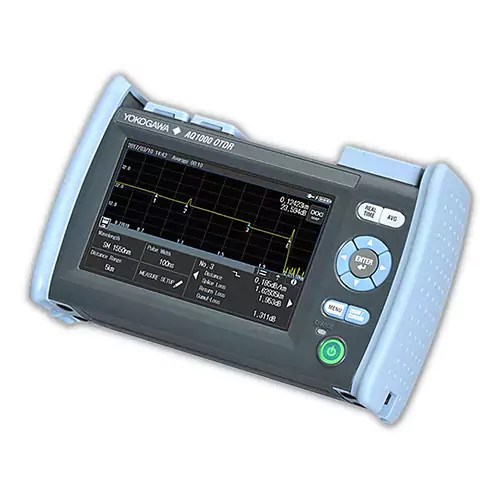

Yokogawa AQ1000
Fitur dan Keuntungan
At-a-glance
The Yokogawa AQ1000 satisfies test and measurement needs in analyzing access optical networks.
- Wavelengths: 1310 / 1550 nm
- Dynamic ranges: 32 / 30 dB
- Size: 185 mm (W) × 116 mm (H) × 56 mm (D) ( 7.3″ (W) × 4.6″ (H) × 2.2″ (D) )
- Weight: 660 g ( 1.46 Lbs ).
Multi-touch touchscreen Intuitive and responsive
Tap, swipe, pinch or press with the intuitive and responsive multi-touchscreen display. This high resolution, responsive 5.0-inch multi-touch capacitive touchscreen combined with hard-key buttons make OTDR operations simple and intuitive.
One-button measurement
Full-Auto
By simply pressing one singe button, the AQ1000 initiates an OTDR measurement, detects and comprehensively characterizes network events with PASS/FAIL judgment based on user-defined thresholds. The measurement data can be saved automatically if desired.
OTDR view modes
Trace view
Traditional view with OTDR waveforms and event markers.
Map view
Simple, icon-based map view for easy interpretation of network events.
Long battery operation time
Over 10 hours!
No worrying about running out of battery power during your daily work. The AQ1000’s high capacity Li-Ion battery will last for 10 hours under the Telcordia standard conditions.
Quick boot-up
Under 10 seconds!
From completely OFF to measurement ready in under 10 seconds!
Fungsi
Key Measurement Functions
- Distance measurement
- Loss measurement
- Return loss measurement (Total/Section)
- Auto event search
- Pass/Fail judgment
- Real-Time.
Simple and fast way to observe how the network connection looks like and make a Pass/Fail judgment of the network connection. The markers enables distance and loss measurements.
Built-in PC and LS, and VLS
Power checker (PC)
Measures and displays optical power of incominglight for testing network performance.
Light source (LS)
Outputs a stable, continuouswave/modulated light for measuring end-to-end attenuationaccurately when paired with an optical power sensor.
Visible light source (VLS)
Outputs red light for checking continuity of launch numbers or short number trunks. Breaks and bending in number can be identified visually.
(VLS option is required).
Data handling features
Direct data saving
Simply pressing “Direct save” icon, measured data can be saved in SOR or PDF format according to users’ prior selection.
PDF reporting
Built-in post-processing software for generating OTDR reports in PDF format. Flexible configuration of report template to meet users’ report requirements.
Data Transfer
Data files or PDF report files that are stored in the AQ1000 can easily be transferred to a PC through a USB connection.
Wireless LAN (soon-to-be-released)
The AQ1000 is capable of data transfer and remote control in cooperation with wireless LAN capable devices.
Wireless data transfer
The AQ1000’s data files can be transferred to a smartphone or tablet using the OTDR data transporter, or to PC using the OTDR Remote Controller software.
Remote control
The AQ1000 can be controlled remotely by a smartphone or tablet using a web browser and by a PC using a web browser or the OTDR remote controller.
Note:
/WLN option is required. Please consult with our sales representatives for availability in your country.
The OTDR Data Transporter and the OTDR Remote Controller are a free application software.
Interface
- USB port (Type micro B)
- USB port (Type A)
- 5.0-inch color LCD with capacitive touch-screen
- VLS port (option)
- OTDR port
- Keys.
USB power feeding
USB port is used for charging the battery of AQ1000. No need to carry a bulky AC adapter anymore.
Note:
A USB power adapter is not included. Please consult with our sales representatives for Yokogawa approved USB power adapters.
Multi language
Selection of display languages to assist users in operating the AQ1000 in their native language.
Additional Information
Weight : 3 kg
