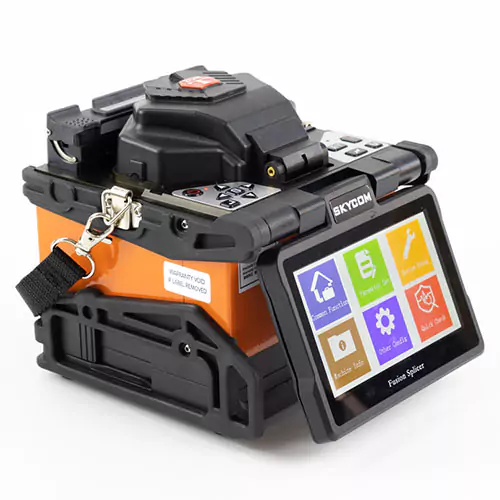

T208H
Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
- 5 inches high resolution colorful LCD display, image can be turned according to position
- Average splice time: 8 seconds
- Average tube-heat time: 25 seconds
- Lithium battery: Rechargable and up to 180 times of continuous splice and heat after fully charged
- X or Y axis Separately views with 400 times magnification, or Simultaneously 300 times
- Cutting-edge technology for image processing
- New developed technology providing strong wind and dust resistance
- Splicing mode: Auto & Manual & Full-Auto
- USB Port
- Storing 6,000 groups of latest splice results
- New technology of fiber core alignment, enhanced accuracy
- New 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber (Patented technology).
| Applicable Fibers | SM, MM, NZ-DS, EDF AND OTHERS |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return Loss | ≥ 60dB |
| Tension Test | 2.0N(200gf) ( Standard ) |
| Typical splicing time | 8 seconds |
| Typical heating time | 25 seconds |
| Splicing Program | 50 groups |
| Heat-shrinkable T Bush | 20mm, 40mm, 60mm |
| Language | Chinese, English, French, Portuguese, Spanish |
| Environmental Conditions | -10 ~ +50 ° C (operation temperature), 0 ~ 95% RH(humidity), 0 ~ 5000m(altitude) |
| Power Supply | AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC)Inner lithium battery: 11.1V, 6AH |
| Monitor | 5 inches high resolution colorful LCD display |
| Fiber Image Magnification | Simultaneously 360 times, more clearly |
| Storage of Splice Result | 6,000 groups of latest splice results |
| Splicing Model | Auto & Manual & Full Auto |
| Optical Fiber Fixture | 3-in-1 cutting fixture; Multipurpose 1+N fixture (T-207XF, for SC/LC/FC connector) |
| Dimensions | 130(W)*135(D)*130(H)mm; Package size: 53*32*30cm |
| Weight | 1.74kg+0.38kg (battery weight)=2.12kg; Package G.W.: 6.03 kg |
Additional Information
Weight : 8 kg
Add-on Warranty : 3 months, 6 months, 1 year
