Deskripsi

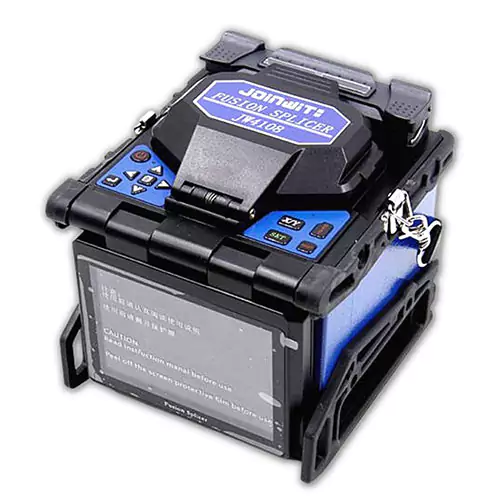

Joinwit JW4108
Penyambung fusi yang cepat dan mumpuni. Secara otomatis mengidentifikasi dan menyambung semua jenis serat (SMF, MMF, DSF, NZDSF, BIF). Waktu penyambungan: 6 detik, waktu pemanasan: 15 detik.
Fitur
l 5 inches high Resolution colorful LCD display
l Average splice time: 10 second
l Average tube-heat time: 30 second
l Lithium battery: up to 180 times of continuous splice and heat
l Simultaneous X and Y views with 180 times magnification
l New developed technology providing wind and dust resistance
l Splicing mode：Auto & Manual & Full-Automation
l USB Port
l Storing 6,000 groups of splice results.
l Multipurpose optical fiber fixture (Such as: Rubber-insulated wire, fiber optic patch cord, bare fiber).
Spesifikasi Joinwit JW4108
| Applicable Fibers | SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return Loss | ≥60dB |
| Tension Test | 2.0N(200gf)（Standard） |
| Splicing Program | 50 groups |
| Protection Sleeve Length | 20mm, 40mm, 60mm |
| Language | Chinese, English |
| Environmental Conditions | -10～+50℃(operation temperature),0～95% RH(humidity), 0～5000m(altitude) |
| Power Supply | AC adaptor: 100～240V input voltage, 50/60Hz; 12V, 5A output voltage(DC)
DC adaptor: 12V voltage 8AH |
| Dimensions | 155（W）*165（D）*150（H） |
| Weight | 2.5kg |
In The Box
Additional Information
Weight : 10 kg
Add-on Warranty : 3 months, 6 months, 1 year
