Deskripsi

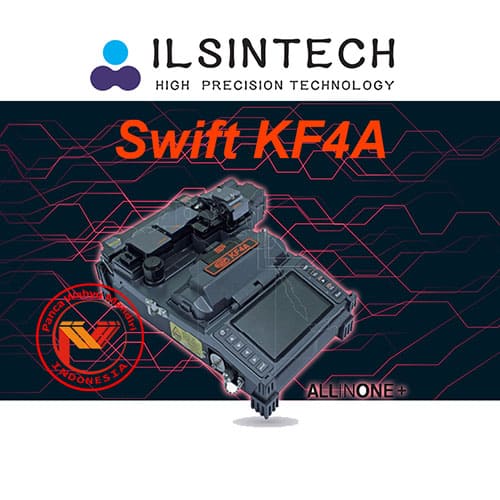

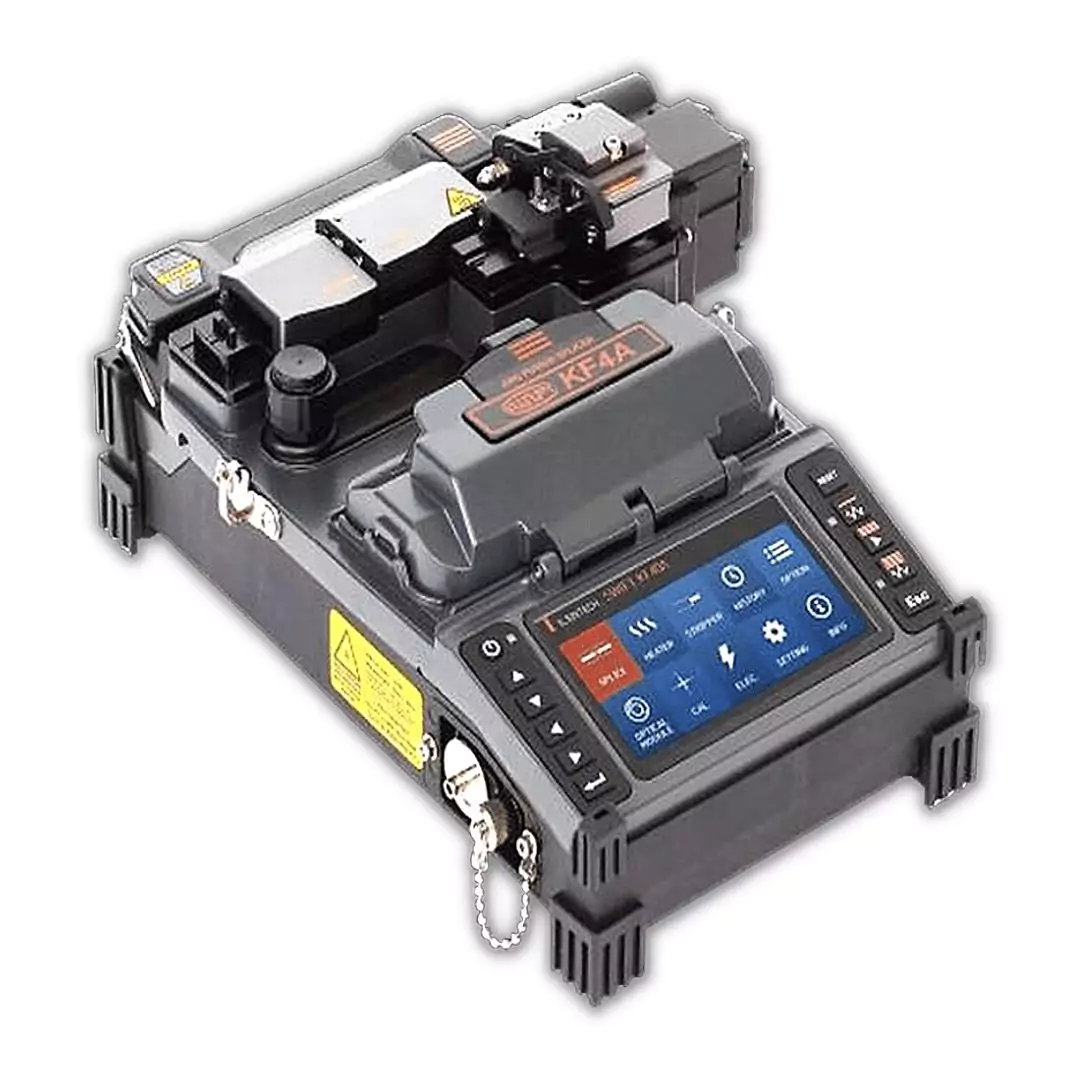

All-in-One Fusion Splicer
Swift KF4A adalah penyambung fusi penyelarasan kelongsong aktif All-In-One yang sangat canggih, dirancang untuk melakukan 5 fungsi utama secara sistematis: pengupasan, pembersihan, pembelahan, penyambungan, dan perlindungan. Swift KF4A paling cocok untuk penyambungan fusi dan konektor penyambungan fusi (SOC) aplikasi jaringan FTTx. Ini menghilangkan masalah fatal yang umum terjadi pada konektor mekanis konvensional termasuk kualitas rendah, daya tahan lemah, dan biaya perawatan tinggi. Penyambung fusi KF4A Swift yang digabungkan dengan konektor penyambungan fusi kami memberikan ROI terbaik kepada pelanggan.
Fitur dan Keuntungan
- Rotating blade life allows up to 77,000 cleaves
- Integrated 5 functions in one unit (stripping, cleaning, cleaving, splicing, protecting)
- The fusion splicer with All-In-One system provides the best workability onsite and in a limited work space
- No scratches on fiber by thermal stripping
- Compatible with Fusion Splice-on Connector (SOC) in accordance with the industry standards
- Ideal for Enterprise, Datacenter, Broadband and FTTH network applications.
Spesifikasi
| Category | Description |
| Fiber alignment | IPAAS Active Cladding Alignment |
| Applicable type of fibers | 0.25mm, 0.9mm, 2.0mm, 3.0mm Indoor cable |
| Fiber count | Single fiber |
| Applicable fiber dimensions | Cladding diameter: 125μm, Coating diameter: 150μm~3mm |
| Fiber setting and cleaved length | 0.20in to 0.63in |
| Splicing modes | Splice mode: 300, Heat mode: 100 |
| Typical splice loss | SM: 0.02dB, MM: 0.01dB, DS:0.04dB, NZDS: 0.04dB |
| Return loss | > 60dB |
| Splicing time | Typical 7 sec with SM |
| Sleeve heating time | Typical 13sec with IS-60 mode, IS-60 sleeve |
| Applicable protection sleeve | 2.4in, 1.5in and micro sleeves |
| Storage of splice result | Data: 5,000ea up to, Image: 5,000ea up to |
| Tension test | 1.96N to 2.25N |
| Operating condition | Altitude: 0~5,000m above sea level, Temperature: -14°F~122°F, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof |
| Storage condition | Temperature: 40°F~176°F, Humidity: 0~95% |
| Dimension | 132(W) x 212(L) x 73(H)mm (without rubber protector) |
| Weight | 1.5kg (including battery) |
| Viewing method and display | 2 AXIS Two CMOS cameras with 4.3-inch color LCD monitor |
| Fiber view and magnification | X/Y: 110X , Max: 220X |
| Power supply | Li-ion Battery(DC 14.8V, 3400mAh), 100 ~ 240V AC charger |
|
No. of splice cycles with battery |
Typical 200 cycles |
| Electrode life | 38,000 splices |
| Blade Life | Up to 77,000 cleaves |
| Terminals | USB |
Paket Standard
| Category | Model | Q’ty |
| Arc Fusion Splicer | SWIFT KF4A | 1 |
| Battery | KF-3400 | 1 |
| Battery Adapter | FY1701000 | 1 |
| Instructions for use | – | 1 pair |
| Spare electrode | EI-24 | 1 pair |
| Transporting Case | HC-11(Hard Case) | 1 |
| Optical fiber holder | – | 1 Pair |
| Cooling Tray | CT-01(1.5in) | 1 |
| Allen wrench | LD-3300 | 1 |
| USB Cable | – | 1 |
| Hard Brush | 1 | |
| Soft Brush | 1 | |
| Tool Box | 1 | |
| Tweezer | 1 |
Opsional
| Category | Model |
| Battery | KF-3400 |
| Cleaver Blade | BI-07 |
| Electrode | EI-24 |
| Transporting Case | ILST-SS03(L)(Soft Case) |
| Work Belt | WB-01 |
| Sleeve | S09-C, S09, S30-C, S30 |
| Sleeve clamp | SC-01 |
| SOC Connector | SC, LC, FC, ST(Refer to FTTx Solution catalogue) |
| Manual stripper | CF-02 |
| External power | DC 12V Available for car cigar jack |
| Optical fiber holder | HS-250, HS-900, HS-2.5, HS-IN, KF4-SC/FC, KF4-ST, KF4-ILC, LS-900 (choose one) |
Additional Information
Weight : 8 kg
